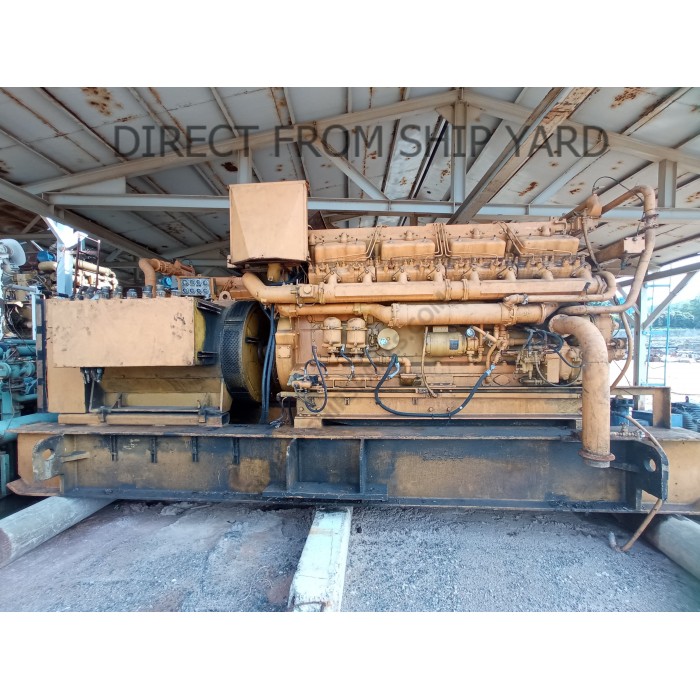

Main Generator for MOPU EP4

Size 5.58mx1.43mx2.7m

ABL-1-DP

Serial Number 84761-02

Catalog Code 6P6 – 2700

Model 1030 – 685361121

Type 21513

KW 1030

KVA 1287.5

Phase 3

Hz 60

RPM 1200

Duty CONTINOUS

Voltage 347/600

Amperes 1240

P.F. 0.8

Temp. Rise 80 C

Design AMB 50 C

Insul Class F

Wire 6

Exc. Fld Amps 7-3.5

Exc. Fld Volts 50-100

Exc. Arm. C Number 12090-42

Exc. Fld. C Number 12058-42

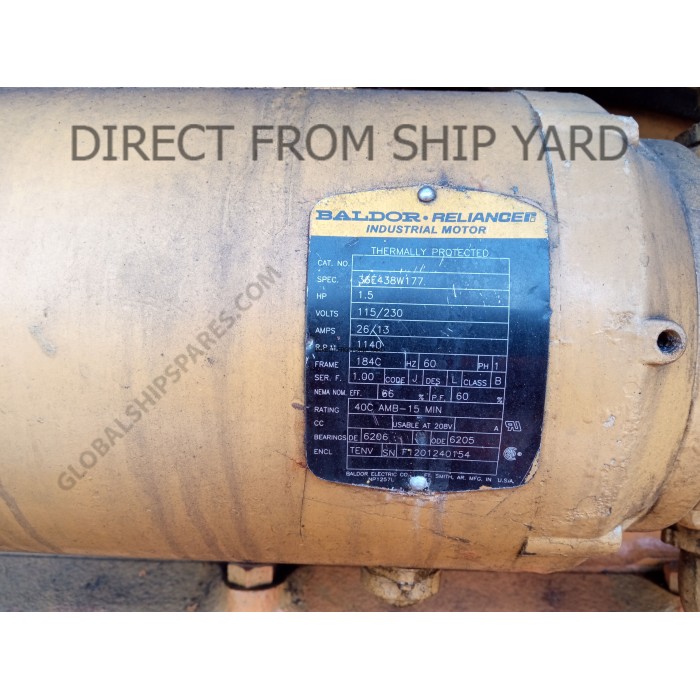

Thermally Protected

Spec 36E438W177

HP 1.5

Volts 115/230

Amps 26/13

RPM 1140

Frame 184 C

HZ 60

PH 1

Ser. F. 1.00

Code J

Des L

Class B

Nema Nom. Eff. 66%

P.F. 60 %

Rating 40C AMB – 15 Min

Bearings DE 6206

Bearings ODE 6205

ENCL TENV

SN F1201240154

Opposite Drive

Bearing Number 012-21202-00

Replenish Interval in Running Time Hours 4800

Replenish Interval in Months 12

Replenish Amount in Ounces 2.7

Drive End

Bearing Number 012-42240-00

Replenish Interval in Running Time Hours 5500

Replenish Interval in Months 12

Replenish Amount in Ounces 8

W.O 14790

S/N 84761-02

Volts 347/600

Amps 1240

Type 21513

KW 1030

Hz 60

RPM 1200

Phase 3
